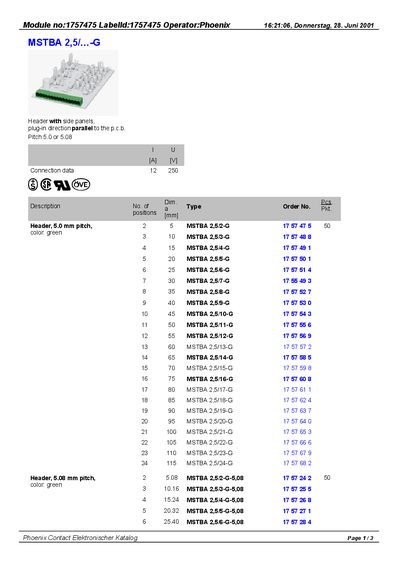

MSTBA 2,5/...-G header with side panels, plug-in direction parallel to the p.c.b. Pitch 5.0 or 5.08 Connection data I [A] 12 U [V] 250 HCAK
The MSTBA 2,5/...-G series from Phoenix Contact provides modular terminal blocks with side‑panel headers. The handbook lists the available variants, colour options and part numbers for quick reference.
Technical data include pitch, pin dimensions, hole diameter, insulation material, UL/CSA approvals and dimensional drawings. The document also contains ordering numbers and notes on handling COMBICON plug connectors. This manual is written in German.
| Pitch | 5.0 mm or 5.08 mm |
|---|---|
| Colour | green |
| Approvals | UL and CSA |
The series is offered with a pitch of either 5.0 mm or 5.08 mm.
Standard units are supplied in green.
The terminal blocks are approved according to UL and CSA standards.
Only when the system is under no‑load condition.
