Start here

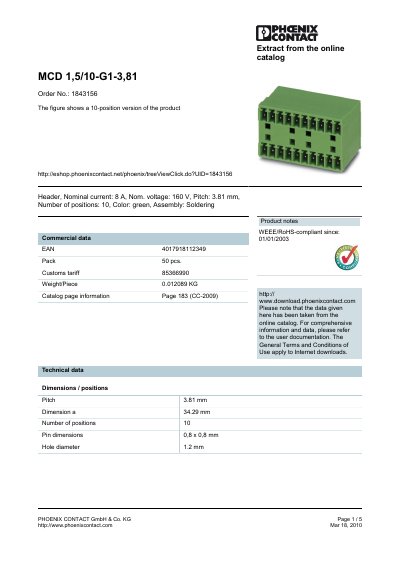

PHOENIX CONTACT MCD 1 5/10-G1-3 81 Order No.: 1843156 handbook
The MCD 1,5/10-G1-3,81 is a 10‑position green terminal block with a 3.81 mm pitch, rated for 8 A nominal current and 160 V nominal voltage. It complies with EN‑VDE standards and is available in solder‑on or screw‑connection versions.
The product data sheet lists detailed dimensions, insulating material (group I), surge voltage ratings, and a range of accessories such as marker pens and labeling cards. Certifications include CB, CSA, CUL, UL and VDE‑PZI, confirming suitability for industrial applications.
Phoenix Contact 10-G1-3 specifications
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 10 |
| Color | green |
| Insulating material group | I |
| Rated surge voltage (III/3) | 2.5 kV |
| Certificates | CB, CSA, CUL, UL, VDE‑PZI |
Source: PHOENIX CONTACT MCD 1 5/10-G1-3 81 Order No.: 1843156 handbook
All Phoenix Contact 10-G1-3 documents by type
Questions answered in these manuals
What is the nominal current of the MCD 1,5/10-G1-3,81?
The nominal current is 8 A.
From: PHOENIX CONTACT MCD 1 5/10-G1-3 81 Order No.: 1843156 handbook
How many positions does the terminal block have?
It has 10 positions.
From: PHOENIX CONTACT MCD 1 5/10-G1-3 81 Order No.: 1843156 handbook
What is the nominal current rating of the MCDN 1,5/10-G1-3,5 P26THR?
The terminal block is rated for 8 A nominal current per position.
From: Phoenix Contact MCDN 1,5/10-G1-3,5 P26THR Product Leaflet
How many positions does the terminal block have?
It has 10 positions.
From: Phoenix Contact MCDN 1,5/10-G1-3,5 P26THR Product Leaflet
