PST 1,3/ 8-LH-5,0 is a 8-position connector produced by PHOENIX CONTACT with a rated current of 14 A, a rated voltage of 250 V, an interface pitch of 5 mm, a black color, and a soldering installation method.
The PST 1,3/8-LH-5,0 is an 8‑position, black‑colored connector with a 5 mm pitch, designed for solder‑type assembly. It is rated for a nominal current of 14 A and a nominal voltage of 250 V.

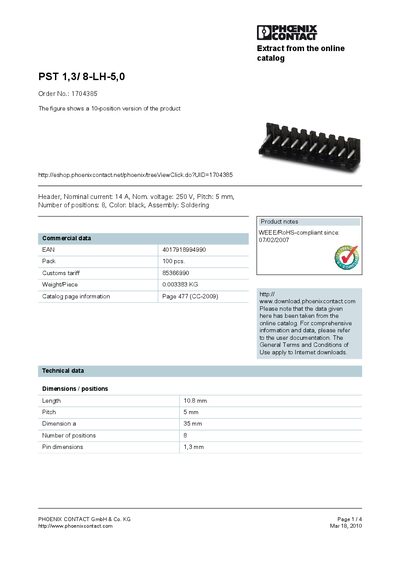

The handbook lists detailed technical data such as length, pin dimensions, weight, and certifications (UL, CUL, EN‑VDE). It also includes commercial information like EAN, packaging quantity, and WEEE/RoHS compliance date, as well as drawing references for drilling and solder pad geometry.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 8 |
| Length | 10.8 mm |
| Dimension a | 35 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.003383 kg |
| EAN | 4017918994990 |
| Pack size | 100 pcs |
| WEEE/RoHS compliance date | 07/02/2007 |
The connector is rated for a nominal current of 14 A.
It has 8 positions.
The connector is 10.8 mm long, with a 5 mm pitch and a 35 mm overall dimension a.
