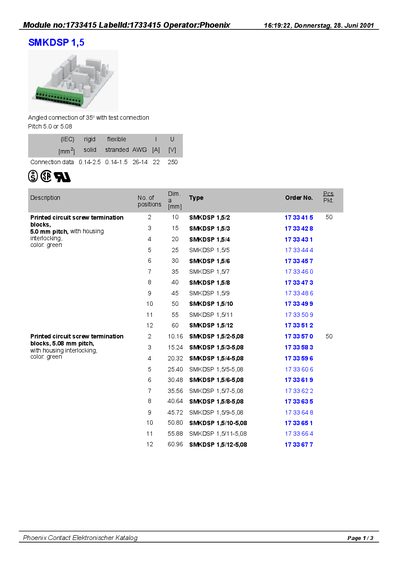

SMKDSP 1,5 is a printed circuit screw termination block with angled connection of 35° with test connection. It is available in 5.0 mm pitch and 5.08 mm pitch, with housing interlocking, color: green. The product is suitable for rigid solid 0.14-2.5 mm2, flexible stranded 0.14-1.5 mm2, AWG 26-14, I [A] 22, U [V] 250.
The SMKDSP 1,5 series are green‑colored printed‑circuit screw termination blocks with a 5.0 mm or 5.08 mm pitch and interlocking housing. Variants are offered from 2 to 12 positions and with both 5 mm and 5.08 mm pitch options.
Technical data include rated voltages up to 630 V, surge voltage of 4 kV, and nominal current of 17.5 A for a 1.5 mm² cross‑section. Accessories such as test plugs, reducing plugs, screwdrivers and marker cards are listed, and a note advises interrupting the terminal row when more than 30 positions are used. This manual is written in German.
| Pitch | 5.0 or 5.08 mm |
|---|---|
| Rated voltage | 250 V / 320 V / 630 V |
| Rated surge voltage | 4 kV |
| Nominal current / cross section | 17.5 A / 1.5 mm² |
| Maximum load current / cross section | 2212.5 A |
| Hole diameter | 1.3 mm |
| Pin dimensions | 0.9 × 0.9 mm |
| Conductor sizes | 0.14‑2.5 mm² / 0.14‑15 mm² / 26‑14 mm² |
They are available with a pitch of 5.0 mm or 5.08 mm.
The series is rated for 250 V, 320 V, and 630 V.
