SPTA 1/ 8-5,0 is a terminal block produced by PHOENIX CONTACT company. The rated current is 9A, the rated voltage is 250V, the terminal pitch is 5mm, it can connect 8 wires and the color is green.

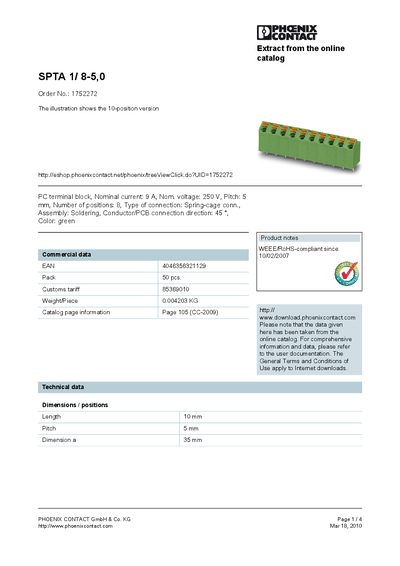

This document provides the technical specifications and commercial data for the Phoenix Contact SPTA 1/8-5,0 terminal block. It includes nominal current, voltage, pitch, number of positions, connection type and material information.
Additional sections list certification approvals, dimensional drawings and contact information for Phoenix Contact. The data is extracted from the online catalog and is intended for reference when selecting or installing the terminal block.
| Nominal voltage | 250 V |
|---|---|
| Pitch | 5 mm |
| Number of positions | 8 |
| Connection type | Spring‑cage |
| Assembly method | Soldering |
| Conductor/PCB connection direction | 45° |
| Color | green |
It has 8 positions.
The pitch is 5 mm.
It uses a spring‑cage connection.
