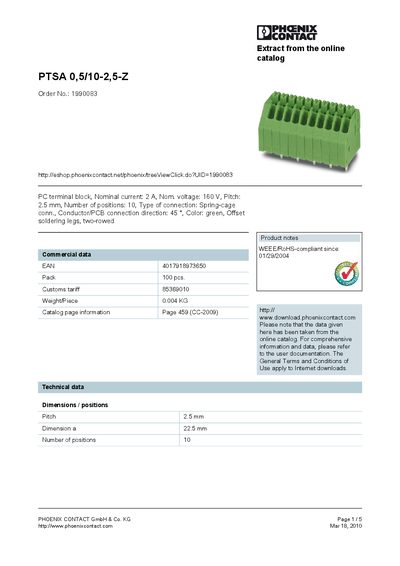

PTSA 0,5/10-2,5-Z is a 10-position PC terminal block from PHOENIX CONTACT with a nominal current of 2 A and a rated voltage of 160 V.
The PTSA 0.5/10-2.5-Z is a spring‑cage terminal block designed for 2 A nominal current and 160 V nominal voltage. It features a 2.5 mm pitch and is available in a 10‑position configuration.
The sheet lists technical data such as surge voltage ratings, pin dimensions, and derating curves, and includes a dimensioned drawing and certification information. For full installation instructions refer to the user documentation linked on the Phoenix Contact website.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 2.5 mm |
| Number of positions | 10 |
The pitch is 2.5 mm.
It has 10 positions.
The nominal current rating is 2 A.
