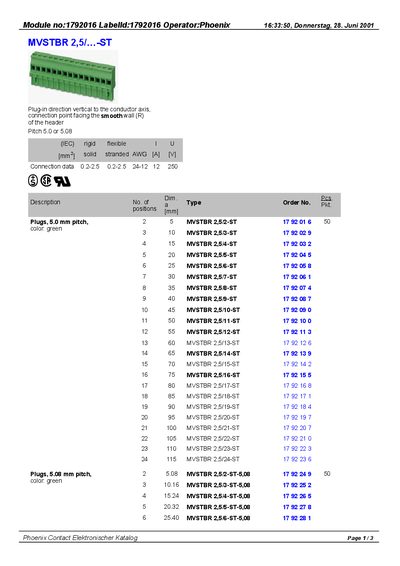

MVSTBR 2,5/...-ST plugs, plug-in direction vertical to the conductor axis, connection point facing the smooth wall (R) of the header
The MVSTBR series from Phoenix Contact provides plug connectors with a 5.0 mm or 5.08 mm pitch, available in multiple positions from 2 up to 24. The catalog lists part numbers, colors, and ordering information for each variant.
Technical specifications such as nominal voltage (300 V), nominal current (10 A), conductor sizes and insulation material are detailed, along with dimensional drawings and approval data (UL and CSA). The document is intended for engineers selecting the appropriate connector for their applications. This manual is written in German.
| Pitch | 5.0 mm or 5.08 mm |
|---|---|
| Nominal voltage | 300 V |
| Nominal current | 10 A |
| Maximum positions | 24 |
The MVSTBR plugs have a pitch of 5.0 mm or 5.08 mm.
The series is rated for 300 V nominal voltage and 10 A nominal current.
Connectors are offered in configurations from 2 up to 24 positions.
