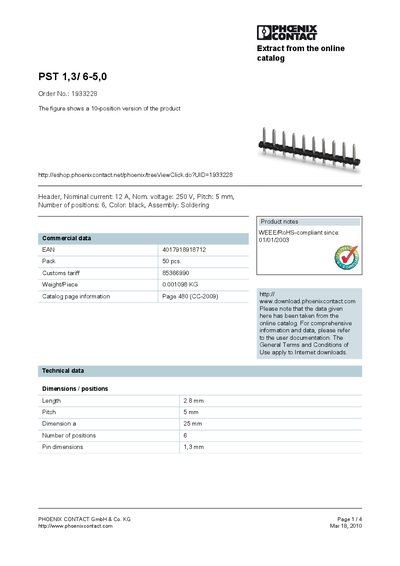

This document provides technical data and commercial information about the PST 1,3/ 6-5,0 product from PHOENIX CONTACT GmbH & Co. KG. The product is a 10-position connector with a nominal current of 12A, nominal voltage of 250V, soldering assembly, and black color.
The PST 1,3/6-5,0 is a 6‑position, 5 mm pitch connector from Phoenix Contact, designed for soldered assembly and rated for 12 A and 250 V. It is supplied in black, with a compact size suitable for a variety of industrial applications.
The leaflet lists technical specifications such as length, pin dimensions, weight, and certification data, as well as commercial information like part number, EAN, and packaging details. Reference drawings and drilling plans are also included for PCB design.
| Nominal current | 12 A (depends on the plug used) |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 6 |
| Length | 2.8 mm |
| Overall dimension a | 25 mm |
| Pin dimension | 1.3 mm |
| Weight per piece | 0.001098 kg |
| EAN | 4017918918712 |
The connector is rated for 12 A (depends on the plug used).
It has six positions.
The connector is 2.8 mm long, with a 5 mm pitch, overall dimension a of 25 mm, and pin dimension of 1.3 mm.
