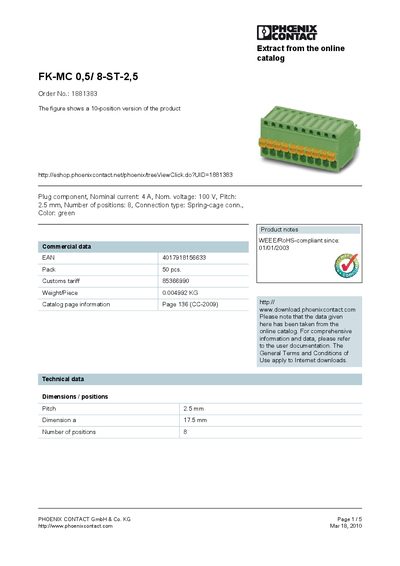

This document is about the FK-MC 0,5/ 8-ST-2,5 product of Phoenix Contact company. The product is an 8-pin plug component with a rated current of 4A, a rated voltage of 100V, a pitch of 2.5mm, a spring cage connection, and a green color.
The FK-MC 0,5/8-ST-2,5 is a green‑colored spring‑cage terminal block with a 2.5 mm pitch and eight positions. It is rated for a nominal current of 4 A and a nominal voltage of 100 V, with a compact dimension of 17.5 mm and a weight of 0.004992 kg per piece.
The product is supplied in packs of 50 pieces (EAN 4017918156633) and complies with RoHS/WEEE regulations since 01/01/2003. Various accessories such as marker cards and screwdrivers are available, and the terminal block holds certifications including CB, CUL, GOST, UL and VDE‑PZI.
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 100 V |
| Pitch | 2.5 mm |
| Number of positions | 8 |
| Dimension a | 17.5 mm |
| Weight per piece | 0.004992 kg |
| EAN | 4017918156633 |
| RoHS compliance date | 01/01/2003 |
| Certifications | CB, CUL, GOST, UL, VDE‑PZI |
The terminal block is rated for a nominal current of 4 A.
It has eight positions.
The pitch is 2.5 mm.
Yes, it has been RoHS compliant since 01/01/2003.
