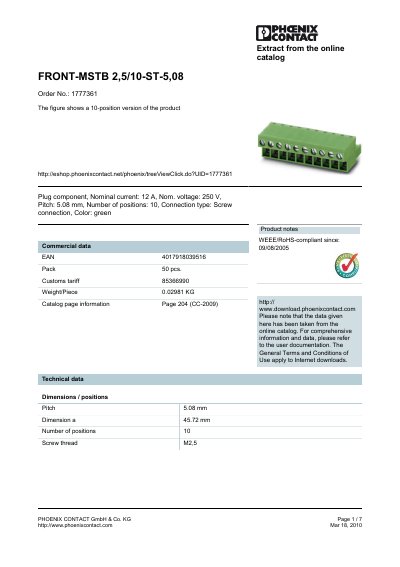

The FRONT-MSTB 2,5/10-ST-5,08 is a 10‑position screw‑connection terminal block with a 5.08 mm pitch, designed for nominal currents of 12 A and nominal voltages of 250 V. It complies with EN‑VDE standards and is RoHS‑/WEEE‑compliant.
The document provides detailed technical data, including tightening torque (0.5‑0.6 Nm), insulating material group, surge voltage ratings, and a range of accessories such as bridges, markers, and tools. Certification listings (CB, CSA, CUL, UL, VDE‑PZI) and part numbers for related components are also included.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 10 |
| Connection type | Screw connection |
| Weight per piece | 0.02981 kg |
| Rated surge voltage (III/3) | 4 kV |
| Insulating material group | I |
| Tightening torque (min) | 0.5 Nm |
| Tightening torque (max) | 0.6 Nm |
The terminal block is rated for a nominal current of 12 A.
The recommended tightening torque is between 0.5 Nm and 0.6 Nm.
It is certified by CB, CSA, CUL, UL, and VDE‑PZI.
The block has a 5.08 mm pitch and provides 10 positions.
