DFK-PC 5/ 2-G-7,62 is a connector launched by PHOENIX CONTACT. The rated current is 41A, the rated voltage is 500V, the pitch is 7.62mm, there are 2 positions, the color is green, and the assembly method is soldering.

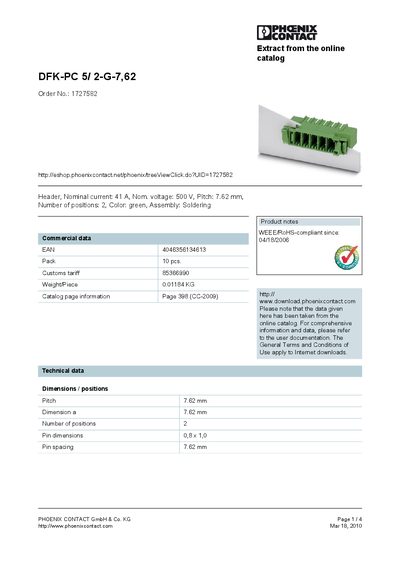

This leaflet presents the key technical data for the DFK-PC 5/2-G-7,62 connector, including nominal current, voltage, pitch, number of positions, and material properties. It also contains dimensional drawings, drilling plans, and assembly details.
Additional information such as commercial data, EAN code, packaging, weight, and compliance notes (WEEE/RoHS) are included, along with the manufacturer's contact address and reference to the online catalog for further documentation.
| Nominal current | 41 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 7.62 mm |
| Number of positions | 2 |
| Color | green |
| Assembly | Soldering |
| Rated voltage (III/2) | 630 V |
| Rated voltage (II/2) | 800 V |
| Insulating material | PA |
| Inflammability class | UL 94 VO |
| Weight per piece | 0.01184 KG |
| EAN | 4046356134613 |
| WEEE/RoHS compliance date | 04/18/2006 |
The nominal current is 41 A.
The pitch is 7.62 mm.
It has 2 positions.
Yes, it has been WEEE/RoHS‑compliant since 04/18/2006.
