UT 2,5 BU is a universal terminal block with screw connection produced by DELIXI. The cross section is 0.14-2.5mm², AWG is 26-12, the width is 5.2mm and the color is blue.
The UT 2,5 BU is a universal terminal block with screw connection, designed for conductor cross sections from 0.14 mm² to 2.5 mm² (AWG 26‑12). It features a compact width of 5.2 mm and is available in a blue color.

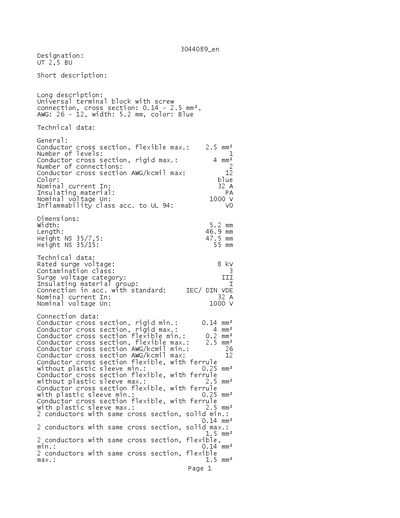

Technical data include a nominal current of 32 A, nominal voltage of 1000 V, and dimensions of 46.9 mm length, 55 mm height (NS 35/7,5) and 5.2 mm width. The terminal block uses a M3 screw thread, requires a minimum tightening torque of 0.6 Nm, and a stripping length of 9 mm.
| Screw thread | M3 |
|---|---|
| Tightening torque (min) | 0.6 Nm |
| Stripping length | 9 mm |
| Type of connection | Screw connection |
A minimum tightening torque of 0.6 Nm is required.
The recommended stripping length is 9 mm.
