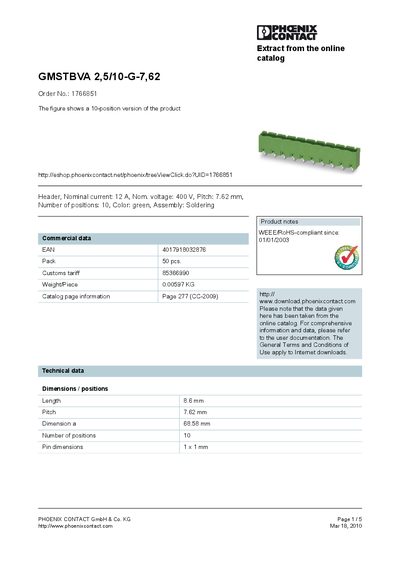

GMSTBVA 2,5/10-G-7,62 is a connector produced by PHOENIX CONTACT company, with rated current 12 A, rated voltage 400 V, pitch 7.62 mm, 10 positions, green color, and soldering assembly.
The GMSTBVA 2,5/10-G-7,62 is a 10‑position green terminal block with a 7.62 mm pitch, designed for soldering assembly. It is rated for a nominal current of 12 A and a nominal voltage of 400 V (some variants 500 V). Technical data include a length of 8.6 mm, pin dimensions of 1 × 1 mm, and a weight of 0.00597 kg per piece.
The data sheet also lists accessories such as keying caps and marker cards, certification approvals (CB, CSA, CUL, GOST, UL, VDE‑PZI), and commercial details like EAN 4017918032876, pack size of 50 pcs, and RoHS compliance since 01/01/2003.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 10 |
| Color | green |
| Assembly type | Soldering |
| Length | 8.6 mm |
| Overall dimension a | 68.58 mm |
| Pin dimensions | 1 x 1 mm |
| Weight per piece | 0.00597 kg |
| EAN | 4017918032876 |
| Certifications | CB, CSA, CUL, GOST, UL, VDE‑PZI |
| RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 12 A.
It has 10 positions.
The pitch is 7.62 mm.
It is certified by CB, CSA, CUL, GOST, UL, and VDE‑PZI.
