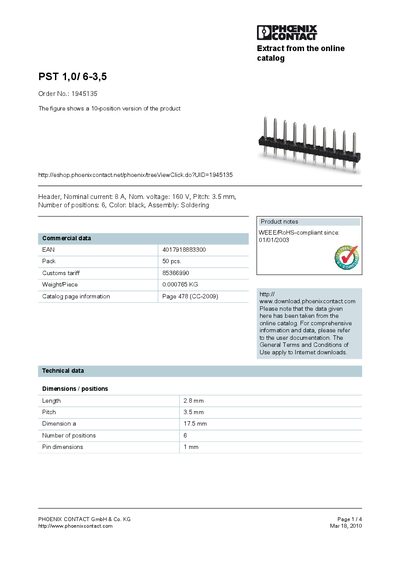

This document describes the features and characteristics of the Phoenix Contact PST 1.0/6-3.5 product, including nominal current, nominal voltage, number of positions, color, and assembly method.
The PST 1,0/6-3,5 is a 6‑position, 3.5 mm pitch terminal block from Phoenix Contact. It is designed for soldering assembly and supports a nominal current of 8 A at 160 V. The product complies with RoHS/WEEE regulations since 2003 and carries multiple certifications such as CUL, GOST, SEV and UL.
The data sheet provides detailed mechanical dimensions (length 2.8 mm, overall width 17.5 mm, pin diameter 1 mm), electrical ratings, and a derating curve for temperature. Commercial information includes the EAN code 4017918883300, packaging of 50 pieces, and a piece weight of 0.000765 kg.
| Nominal current | 8 A (depends on the plug used) |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 6 |
| Length | 2.8 mm |
| Overall width (dimension a) | 17.5 mm |
| Pin diameter | 1 mm |
| Weight per piece | 0.000765 kg |
| EAN | 4017918883300 |
| Packaging | 50 pcs per pack |
The terminal block is rated for a nominal current of 8 A (depending on the plug used).
It has six positions.
The pitch is 3.5 mm.
It is certified according to CUL, GOST, SEV and UL standards.
