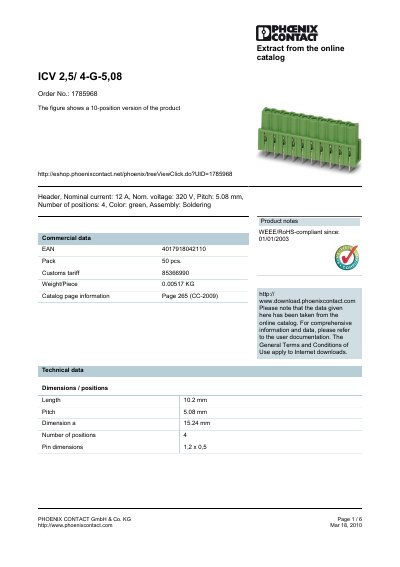

This document provides information about the product ICV 2,5/ 4-G-5,08 from PHOENIX CONTACT GmbH & Co. KG. The product is a connector with a nominal current of 12 A, nominal voltage of 320 V, 4 positions, green color, and soldering assembly.
The ICV 2,5/4-G-5,08 is a 4‑position, green‑colored connector with a 5.08 mm pitch. It is rated for a nominal current of 12 A and a nominal voltage of 320 V, with a length of 10.2 mm and a hole diameter of 1.4 mm. Technical data include rated surge voltage of 4 kV, insulating material group I, and compliance with multiple certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI).
The datasheet also lists a range of compatible accessories such as guide rails, keying profiles, and various plug/header variants. Commercial details include an EAN of 4017918042110, a pack size of 50 pieces, and a weight of 0.00517 kg per piece.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 320 V |
| Pitch | 5.08 mm |
| Number of positions | 4 |
| Length | 10.2 mm |
| Hole diameter | 1.4 mm |
| Rated surge voltage | 4 kV |
| Insulating material group | I |
| Weight per piece | 0.00517 kg |
| EAN | 4017918042110 |
| Certificates / Approvals | CB, CSA, CUL, GOST, UL, VDE‑PZI |
The connector is rated for a nominal current of 12 A.
The pitch is 5.08 mm.
It is certified by CB, CSA, CUL, GOST, UL, and VDE‑PZI.
The rated surge voltage is 4 kV.
