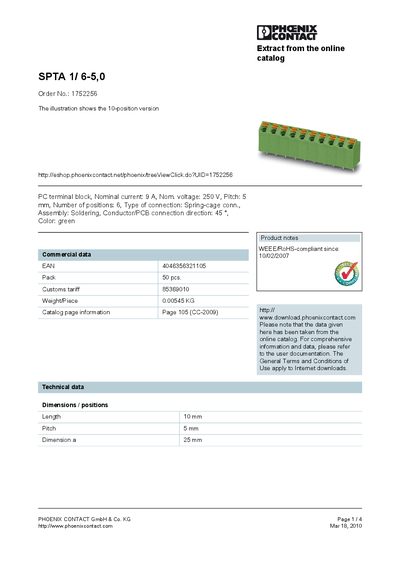

spta 1/ 6-5,0 is a terminal block produced by phoenix contact. it has a rated current of 9 a, a rated voltage of 250 v, a pitch of 5 mm, 6 positions, a spring-cage connection, a soldering assembly, a 45 ° conductor/pcb connection direction, and a green color.
The SPTA 1/6-5.0 is a 6‑position terminal block with a spring‑cage connection, designed for soldering onto PCBs. It is rated for a nominal current of 9 A, nominal voltage of 250 V, and has a 5 mm pitch. The block is green, weighs 0.00545 kg per piece, and is supplied in packs of 50.
The leaflet lists detailed technical data such as surge voltage ratings (4 kV), rated voltages (320 V, 630 V), conductor cross‑section ranges, and dimensional drawings. For full documentation and ordering, refer to the Phoenix Contact online catalog.
| Nominal current | 9 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 6 |
| Connection type | Spring‑cage |
| Assembly method | Soldering |
| Conductor/PCB direction | 45° |
| Weight per piece | 0.00545 kg |
| Nominal voltage Ux (certification) | 300 V |
| Nominal current (certification) | 10 A |
| AWG/kcmil range | 26‑16 |
The terminal block is rated for a nominal current of 9 A.
It has six positions.
The pitch between pins is 5 mm.
It uses a spring‑cage connection.
