MC 1,5 / 3-G-3,81 THT is a connector from PHOENIX CONTACT with a nominal current of 8 A, rated voltage of 160 V, a pitch of 3.81 mm, 3 pins and a black color.
The MC 1,5/3-G-3,81 THT is a compact terminal block with a 3.81 mm pitch, designed for 8 A nominal current and 160 V nominal voltage. It is available in 3‑position and 10‑position versions, with a length of 9.2 mm and a pin size of 0.8 × 0.8 mm.

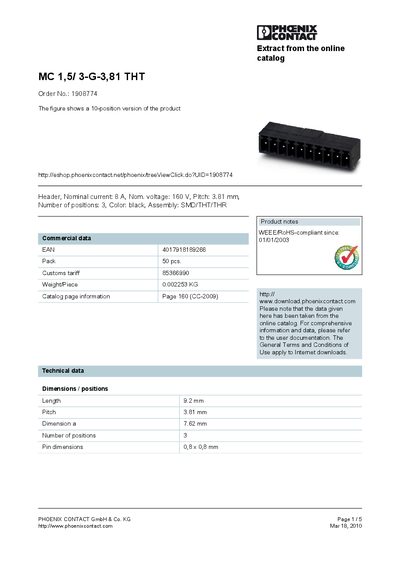

The data sheet lists commercial information such as packaging (50 pcs per pack), weight (0.002253 kg per piece), and regulatory compliance (WEEE/RoHS‑compliant since 01/01/2003). Additional sections cover technical drawings, certification marks, and related accessories.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions (standard) | 3 |
| Length | 9.2 mm |
| Dimension a | 7.62 mm |
| Pin dimensions | 0.8 × 0.8 mm |
| Weight per piece | 0.002253 kg |
| Packaging quantity | 50 pcs |
| WEEE/RoHS compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
The standard version has 3 positions.
The pitch is 3.81 mm.
Each pack contains 50 pieces.
