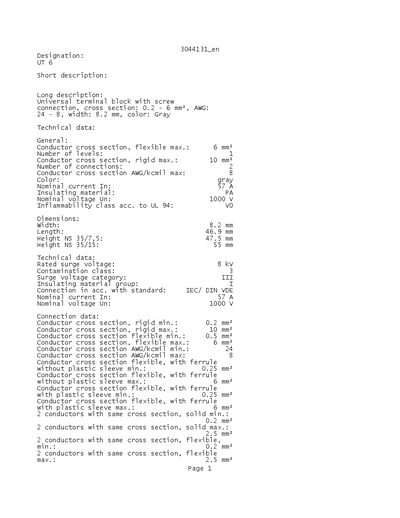

This document describes the technical data and features of the UT 6 universal terminal block, including screw connection, applicable conductor cross section, dimensions, etc.
The UT6 is a universal terminal block with screw connection, supporting conductor cross sections from 0.2 mm² to 6 mm² (AWG 24‑8). It is offered in a gray housing with a width of 8.2 mm and various height options.
Key specifications include a nominal current of 57 A, a nominal voltage rating of 1000 V, and a tightening torque minimum of 1.5 Nm. The terminal block features a screw thread M4, a stripping length of 10 mm, and optional plastic‑sleeve ferrules for flexible conductors.
| Height options | 46.9 mm – 55 mm |
|---|---|
| Stripping length | 10 mm |
| Tightening torque (min) | 1.5 Nm |
It uses a screw connection.
The minimum tightening torque is 1.5 Nm.
The recommended stripping length is 10 mm.
