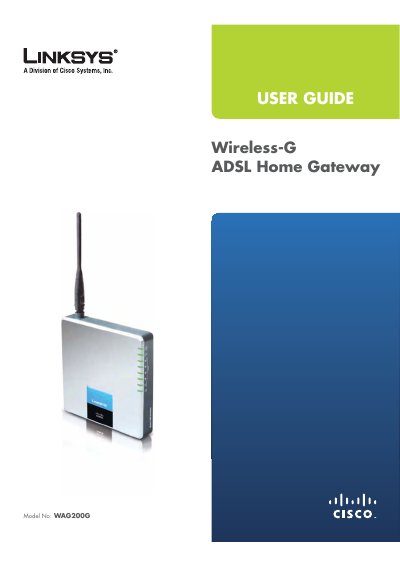

This document is the user manual for Linksys WAG200G Wireless-G ADSL Home Gateway
This user guide provides a complete overview of the Linksys WAG200G Wireless‑G ADSL Home Gateway, including hardware description, front and back panel LEDs, and basic operation. It walks you through installation steps, wiring, and initial configuration using the web‑based utility.
Later chapters cover wireless security best practices, advanced settings such as QoS, VPN passthrough, and detailed specifications. Appendices include troubleshooting, warranty, and regulatory compliance information for FCC, Industry Canada and EU directives.
| Model Number | WAG200G |
|---|---|
| Standards | IEEE 802.11g, IEEE 802.11b |
| Ports | Line (DSL), Ethernet 1‑4, Power |
| Transmit Power | 18 dBm |
| Dimensions | 140 x 140 x 27 mm |
| Weight | 350 g (12.35 oz) |
| Power Supply | 12 V DC, 1 A |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
Press and hold the Reset button for about five seconds, or restore defaults via the Administration > Factory Defaults screen in the web utility.
Enter 192.168.1.1 in a web browser to reach the gateway’s configuration interface.
The default username and password are both "admin" unless you change them during setup.
