This manual introduces the basic installation steps for connecting SPA932 Attendant-Console and SPA962 IP Phone

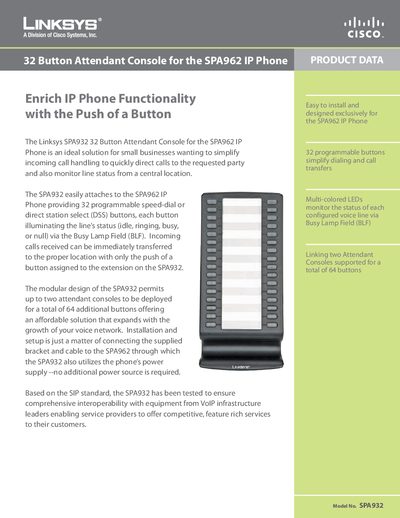

The SPA932 is a 32‑button attendant console designed to attach to the Linksys SPA962 IP phone. It offers programmable speed‑dial, Direct Station Select (DSS), Busy Lamp Field (BLF) monitoring, and one‑touch call transfer, with multi‑color LEDs indicating line status.
Installation is simple: connect the supplied bracket and cable to the SPA962, which also supplies power to the console. The modular design allows up to two consoles for a total of 64 buttons, expanding with the growth of a small‑business voice network.
| Model Number | SPA932 |
|---|---|
| Auxiliary Ports | 2 |
| Programmable Buttons | 32 |
| LED Colors | Green, Red, Orange |
| Dimensions (W×H×D) | 4 x 8.5 x 1.5 in (102 x 216 x 38 mm) |
| Weight | 2 lbs (0.9 kg) |
| Power Source | Provided by host SPA962 IP Phone (no extra supply) |
| Operating Temperature | 41 to 113°F (5 to 45°C) |
| Storage Temperature | -13 to 185°F (-25 to 85°C) |
| Operating Humidity | 10 to 90% non‑condensing |
The SPA932 provides 32 programmable multi‑color LED buttons.
The console draws power from the attached SPA962 IP phone and does not need an additional power source.
Green shows idle, red shows in‑use, blinking red indicates ringing, and orange signals a registration error.
The console measures 4 × 8.5 × 1.5 inches (102 × 216 × 38 mm).
