Maxim MAX1197 Dual 8‑Bit 60 Msps 3 V Low‑Power ADC with Internal Reference Parallel Outputs Datasheet

The MAX1197 is a 3V, dual, 8-bit analog-to-digital converter (ADC) featuring fully differential wideband track-and-hold (T/H) inputs, driving two ADCs. The MAX1197 is optimized for low-power, small size, and high-dynamic performance for applications in imaging, instrumentation, and digital communications. This ADC operates from a single 2.7V to 3.6V supply, consuming only 120mW while delivering a typical signal-to-noise and distortion (SINAD) of 48.5dB at an input frequency of 30MHz and a sampling rate of 60Msps. The T/H-driven input stages incorporate 400MHz (-3dB) input amplifiers. The converters may also be operated with single-ended inputs. In addition to low operating power, the MAX1197 features a 3mA sleep mode as well as a 0.1µA power-down mode to conserve power during idle periods. An internal 2.048V precision bandgap reference sets the full-scale range of the ADC. A flexible reference structure allows the use of this internal or an externally applied reference, if desired, for applications requiring increased accuracy or a different input voltage range. The MAX1197 features parallel, CMOS-compatible three-state outputs. The digital output format can be set to two’s complement or straight offset binary through a single control pin. The device provides for a separate output power supply of 1.7V to 3.6V for flexible interfacing with various logic families. The MAX1197 is available in a 7mm x 7mm, 48-pin TQFP package, and is specified for

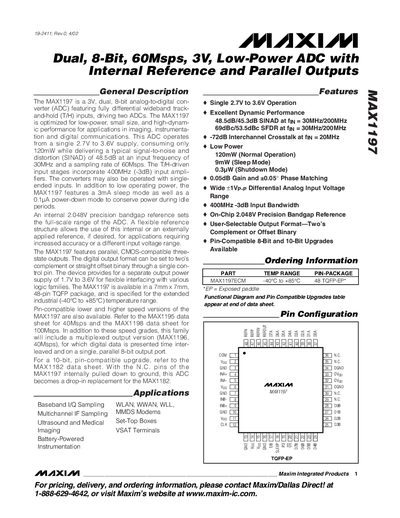

Maxim MAX1197 Dual 8‑Bit 60 Msps 3 V Low‑Power ADC with Internal Reference Parallel Outputs Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
22
File format
PDF
File size
546 KB
Published
07 May, 2012
Updated
29 September, 2023
Model
60MSPS
MD5 checksum
756968A333D12BE18CD1B0E5627AE572

About this manual

The MAX1197 is a dual, 8‑bit analog‑to‑digital converter that operates from a single 2.7 V to 3.6 V supply. It features fully differential wideband track‑and‑hold inputs, internal 2.048 V bandgap reference, and CMOS‑compatible three‑state parallel outputs. The device is offered in a 48‑pin TQFP package and is rated for the extended industrial temperature range (‑40 °C to +85 °C).

Key specifications include a 60 MHz maximum clock frequency, 400 MHz –3 dB input bandwidth, 48.5 dB SINAD at 30 MHz, and low power consumption (120 mW normal, 9 mW sleep, 0.3 µW shutdown). The datasheet provides absolute maximum ratings, detailed electrical characteristics, timing diagrams, typical operating curves, and pin‑compatible upgrade options.

What's inside

  • General Description
  • Features
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Timing Characteristics
  • Typical Operating Characteristics
  • Functional Diagram
  • Pin‑Compatible Upgrades
  • Package Information

Specifications

Resolution8 bits
Supply Voltage Range2.7 V to 3.6 V
Power Consumption (Normal)120 mW
Power Consumption (Sleep)9 mW
Power Consumption (Shutdown)0.3 µW
Differential Input Voltage Range±1 V p‑p
Internal Reference Voltage2.048 V

Frequently asked questions

What supply voltage range does the MAX1197 support?

The device operates from a single 2.7 V to 3.6 V supply.

What low‑power modes are available?

It includes a 3 mA sleep mode and a 0.1 µA power‑down mode to conserve energy when idle.

In what package is the MAX1197 offered?

It is available in a 48‑pin TQFP package (7 mm × 7 mm).
