Maxim MAX12555 14‑Bit 95Msps 3.3V ADC Datasheet

The MAX12555 is a 3.3V, 14-bit, 95Msps analog-to-digital converter (ADC) featuring a fully differential wideband track-and-hold (T/H) input amplifier, driving a low-noise internal quantizer. The analog input stage accepts single- ended or differential signals. The MAX12555 is optimized for high dynamic performance, low power, and small size. Excellent dynamic performance is maintained from baseband to input frequencies of 175MHz and beyond, making the MAX12555 ideal for intermediate- frequency (IF) sampling applications. Powered from a single 3.3V supply, the MAX12555 con- sumes only 497mW while delivering a typical 72dB sig- nal-to-noise ratio (SNR) performance at a 175MHz input frequency. In addition to low operating power, the MAX12555 features a 300µW power-down mode to conserve power during idle periods. A flexible reference structure allows the MAX12555 to use the internal 2.048V bandgap reference or accept an externally applied reference. The reference structure allows the full-scale analog input range to be adjusted from ±0.35V to ±1.10V. The MAX12555 provides a com- mon-mode reference to simplify design and reduce exter- nal component count in differential analog input circuits. The MAX12555 supports either a single-ended or differ- ential input clock. Wide variations in the clock duty cycle are compensated with the ADC’s internal duty- cycle equalizer (DCE). ADC conversion results are available through a 14-bit, parallel, CMOS-compatible output b

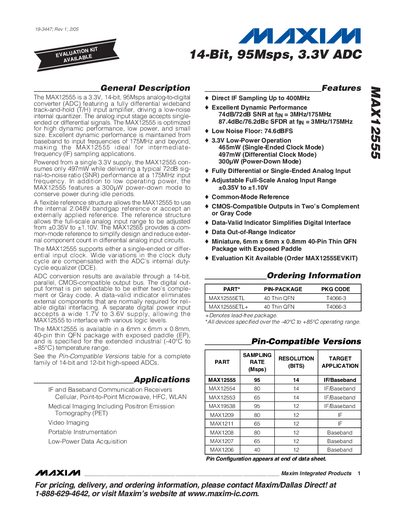

Maxim MAX12555 14‑Bit 95Msps 3.3V ADC Datasheet - cover page
Brand
Maxim
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
28
File format
PDF
File size
1014 KB
Published
07 May, 2012
Updated
30 September, 2023
Model
MAX125
MD5 checksum
8D3DE986FBB6E0B63DB037D92BC1D12D

About this manual

The MAX12555 is a 14‑bit, 95 Msps analog‑to‑digital converter optimized for high dynamic performance, low power consumption, and a compact 6 mm × 6 mm × 0.8 mm thin QFN package. It supports single‑ended or differential inputs, an internal 2.048 V band‑gap reference or an external reference, and provides CMOS‑compatible parallel outputs selectable as two’s‑complement or Gray code.

Key features include a typical 720 B SNR at 175 MHz, a flexible reference structure, a 300 µW power‑down mode, and a wide operating temperature range of –40 °C to +85 °C. The datasheet provides detailed electrical characteristics, timing specifications, and package information for designers.

What's inside

  • General Description
  • Features
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Internal Reference
  • Clock Inputs
  • Digital Inputs
  • Digital Outputs
  • Power Requirements
  • Timing Characteristics

Specifications

Resolution14 bits
Maximum Sampling Rate95 Msps
Power Consumption (single‑ended clock)465 mW
Power Consumption (differential clock)497 mW
Power‑down Mode Power300 µW
Input Voltage Range+0.35 V to +1.10 V
Package40‑pin thin QFN 6 mm × 6 mm × 0.8 mm
Operating Temperature Range–40 °C to +85 °C

Frequently asked questions

What is the maximum sampling rate of the MAX12555?

The MAX12555 can sample up to 95 Msps.

How much power does the MAX12555 consume in differential clock mode?

It consumes 497 mW in differential clock mode.

What package does the MAX12555 use?

It is offered in a 40‑pin thin QFN package measuring 6 mm × 6 mm × 0.8 mm.

What is the allowable input voltage range for the MAX12555?

The full‑scale analog input range can be set from +0.35 V to +1.10 V.
