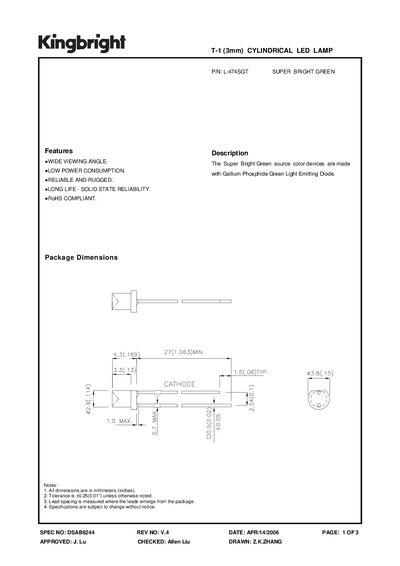

This document is the specification of LED lamp L-474SGT. The lamp has wide viewing angle, low power consumption, reliable, rugged, and long life. It conforms to RoHS standard
The DSAB6244 is a 3 mm cylindrical Super Bright Green LED lamp from Kingbright, featuring a wide viewing angle, low power consumption, rugged construction, long life and RoHS compliance. It uses a Gallium Phosphide (GaP) green LED and is supplied in a transparent package.
The document provides package dimensions, selection guide data, electrical and optical characteristics, absolute maximum ratings and performance graphs, enabling designers to evaluate the part for their applications.
| Peak Wavelength | 565 nm |
|---|---|
| Forward Voltage (20 mA) | 2.2‑2.5 V |
| Power Dissipation | 105 mW |
| DC Forward Current | 25 mA |
| Operating Temperature Range | -40 °C to +85 °C |
The forward voltage is 2.2 V to 2.5 V at 20 mA.
The device can dissipate up to 105 mW.
The peak wavelength is 565 nm.
It operates from –40 °C to +85 °C.
