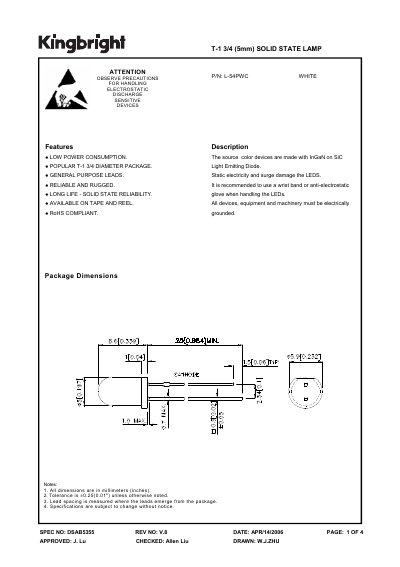

This document describes an InGaN on SiC Light Emitting Diode with features such as low power consumption, reliability, and long life. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs, and to ensure that all devices and machinery are electrically grounded.
The L-54PWC is a white surface‑mount LED built with InGaN on SiC. It is a low‑power, solid‑state light source designed for general‑purpose applications and is RoHS compliant. Handling requires electrostatic discharge protection such as a wrist strap or anti‑static gloves, and all equipment must be grounded.
Key specifications include a forward voltage of 3.65‑4.2 V at 20 mA, a typical forward current of 30 mA, peak forward current of 160 mA, power dissipation of 102 mW, reverse voltage rating of 5 V, operating temperature range from –40 °C to +85 °C, and a chromaticity coordinate of X=0.33, Y=0.34. The package is a 5 mm (T‑1 3/4) solid‑state lamp available on tape and reel. This manual is written in Chinese.
| Power dissipation | 102 mW |
|---|---|
| Forward voltage (typical) | 3.65‑4.2 V |
| Forward current (typical) | 30 mA |
| Reverse voltage | 5 V |
| Operating temperature range | -40 °C to +85 °C |
Use a wrist strap or anti‑static glove and ensure all equipment is electrically grounded.
The LED can tolerate up to 5 V reverse voltage.
The device operates from –40 °C up to +85 °C.
