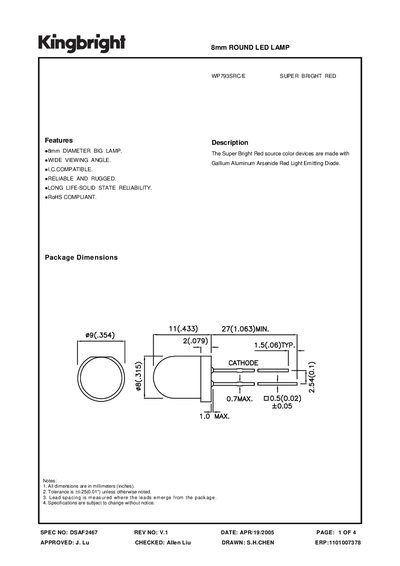

This document is a specification for WP793SRC/E, an 8mm round LED lamp with a red light-emitting diode. It has wide viewing angle, reliable, rugged, long life, etc.
The WP793SRC/E is a 8 mm round super bright red LED lamp featuring a wide viewing angle and C‑compatible package. It is RoHS compliant and designed for reliable, long‑life solid‑state operation.
The datasheet provides full electrical and optical characteristics, absolute maximum ratings, spectral data, and packaging details such as 200 pieces per bag. It also includes a selection guide with viewing angle and luminous intensity information.
| Peak Wavelength | 660 nm |
|---|---|
| Forward Voltage (VF) at 20 mA | 1.85 V |
| Reverse Current (IR) at 5 V | 10 µA |
| Power Dissipation | 100 mW |
| DC Forward Current | 30 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Capacitance | 45 pF |
| Packaging Quantity | 200 pcs per bag |
| RoHS Compliance | Yes |
The forward voltage is 1.85 V at a test current of 20 mA.
The reverse current is limited to 10 µA when the reverse voltage is 5 V.
Each bag contains 200 pieces of the WP793SRC/E LED.
Yes, the device is RoHS compliant.
