The document describes a blue light emitting diode (LED) product with features such as low power consumption, high reliability, and long life. It is important to observe precautions for electrostatic discharge.

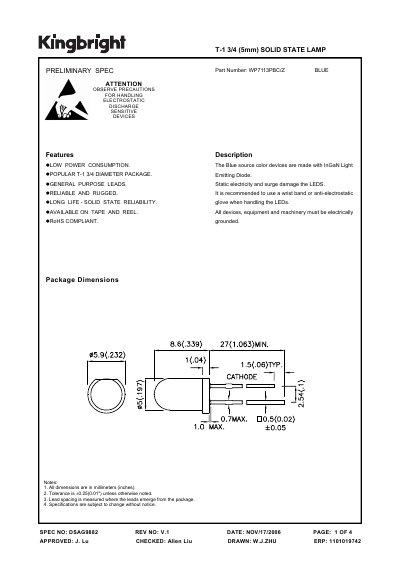

The WP7113PBC/Z is a blue InGaN light‑emitting diode packaged in a T‑1 3/4 (5 mm) solid‑state lamp form factor. It offers low power consumption, reliable operation, and is available on tape and reel. The device complies with RoHS directives.
When handling the LED, electrostatic discharge (ESD) protection is required; use a wrist strap or anti‑static gloves and ensure all equipment is grounded. The package dimensions, lead spacing, and recommended soldering temperatures are specified for proper assembly.
| Peak Wavelength | 458 nm |
|---|---|
| Dominant Wavelength | 465 nm |
| Spectral Line Half‑width | 22 nm |
| Capacitance | 110 pF |
| Forward Voltage (typ) | 3.2‑3.7 V |
| Reverse Current | 10 µA |
| Power Dissipation | 111 mW |
| DC Forward Current | 30 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40°C to +85°C |
The peak wavelength is 458 nm.
The forward voltage is between 3.2 V and 3.7 V.
Yes, the device is listed as RoHS compliant.
