This document provides the specifications of WP424IDT HIGH EFFICIENCY RED product, including size, color, luminous intensity, viewing angle and other information.
The WP424IDT is a high‑efficiency red cylindrical LED lamp featuring low power consumption, long life, and RoHS compliance. It is supplied on tape and reel and includes detailed electrical and optical characteristics such as peak wavelength, forward voltage, and reverse current.

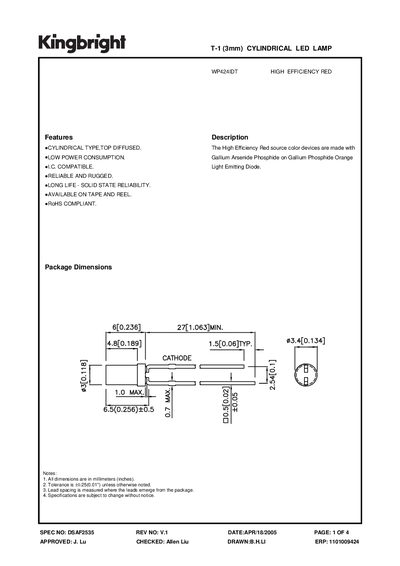

The document provides package dimensions, selection guide data, absolute maximum ratings, and packaging/label specifications, including typical sorting accuracies for wavelength, luminous intensity, and forward voltage.
| Peak Wavelength | 627 nm |
|---|---|
| Dominant Wavelength | 625 nm |
| Spectral Line Half‑width | 45 nm |
| Capacitance | 15 pF |
| Forward Voltage (typ.) | 2.0‑2.5 V @ 20 mA |
| Reverse Current | 10 µA @ 5 V |
| Power Dissipation | 105 mW |
| DC Forward Current | 30 mA |
| Peak Forward Current | 160 mA |
| Operating Temperature Range | -40 °C to +85 °C |
The typical forward voltage is 2.0 V to 2.5 V at a forward current of 20 mA.
The peak wavelength is 627 nm.
Maximum power dissipation is 105 mW, DC forward current 30 mA, peak forward current 160 mA, and reverse voltage 5 V.
