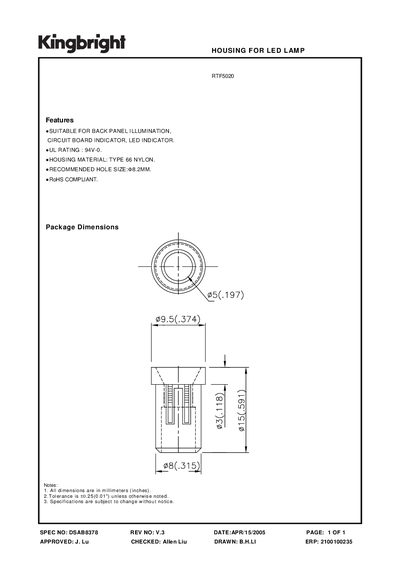

This document is a specification for the DSAB8378 LED lamp housing. The housing is suitable for back panel illumination, circuit board indicator, and LED indicator. The housing material is type 66 nylon and it is RoHS compliant. The recommended hole size is Φ8.2MM.
The DSAB8378 is a housing designed for back‑panel illumination, circuit‑board indicators, and LED indicators. It is suitable for mounting LED lamps in various electronic equipment.
Key features include a 94V‑0 rating, TYPE 66 nylon construction, an 8.2 mm recommended mounting hole, and RoHS compliance. Package dimensions and tolerances are listed in the sheet, with all measurements given in millimetres.
| Rating | 94V-0 |
|---|---|
| Housing material | TYPE 66 NYLON |
| Recommended hole size | 8.2 mm |
| RoHS compliance | Yes |
The recommended mounting hole size is 8.2 mm.
Yes, the housing is RoHS compliant.
