This document is the specification of L-53MBC BLUE (GaN) WATER CLEAR

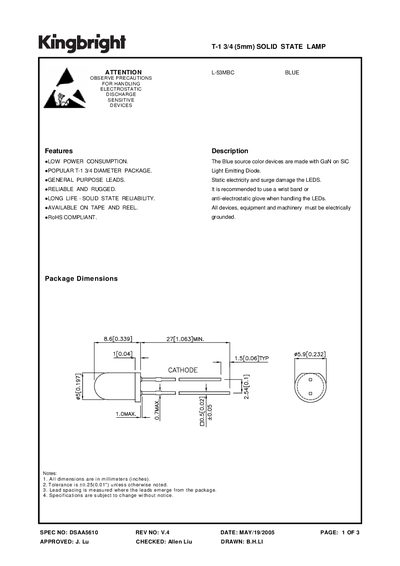

This datasheet describes the Kingbright L-53MBC solid‑state lamp, a 5 mm blue LED packaged in a T‑1 3/4 (5 mm) package. It includes handling precautions for electrostatic‑sensitive devices and outlines the product’s general features such as low power consumption and RoHS compliance.
The document lists detailed electrical and optical characteristics, absolute maximum ratings, package dimensions, and spatial distribution data. A selection guide with typical values for forward voltage, luminous intensity and wavelength is also provided.
| Peak Wavelength | 430 nm |
|---|---|
| Forward Voltage (typ.) | 3.8 V |
| Forward Voltage (max.) | 4.5 V |
| Reverse Current | 10 µA |
| Capacitance | 100 pF |
| Power Dissipation | 105 mW |
| Operating Temperature | -40 °C to +85 °C |
The peak wavelength is 430 nm.
Typical forward voltage is 3.8 V, rising to a maximum of 4.5 V.
Maximum power dissipation is 105 mW, DC forward current 30 mA, peak forward current 150 mA, and reverse voltage 5 V.
