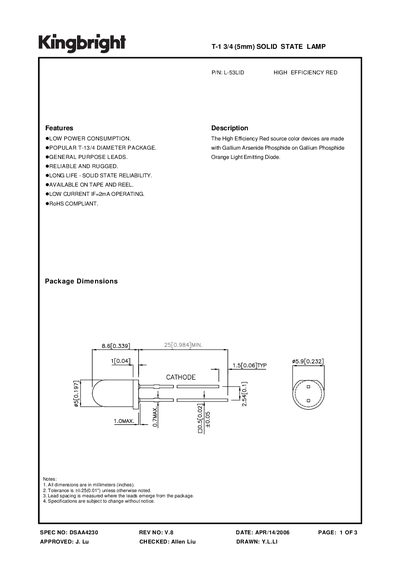

This document describes a high-efficiency red solid state lamp with a T-1 3/4 (5mm) size. It features low power consumption, reliability, and ruggedness. The lamp is made with Gallium Arsenide Phosphide on Gallium Phosphide material and emits orange light. It has a long life and solid state reliability, and is RoHS compliant.
The Kingbright L-53LID is a high‑efficiency red solid‑state lamp (5 mm, T‑1 3/4 package) offering low power consumption, rugged construction, and RoHS compliance. It is supplied on tape and reel and features a long‑life solid‑state reliability with a low operating current of 2 mA.
The datasheet provides detailed electrical and optical characteristics, including a peak wavelength of 627 nm, forward voltage of 2.0 V at 20 mA, and a maximum power dissipation of 105 mW. Absolute maximum ratings, package dimensions, and performance curves for forward current versus luminous intensity are also included.
| Peak Wavelength | 627 nm |
|---|---|
| Forward Voltage (20 mA) | 2.0 V |
| Reverse Current (5 V) | 10 µA |
| Capacitance | 15 pF |
| Power Dissipation | 105 mW |
| DC Forward Current | 30 mA |
| Peak Forward Current | 160 mA |
| Operating Temperature Range | -40 °C to +85 °C |
The forward voltage is 2.0 V at a test current of 20 mA.
The peak wavelength is 627 nm.
The device can dissipate up to 105 mW.
It operates from –40 °C to +85 °C.
