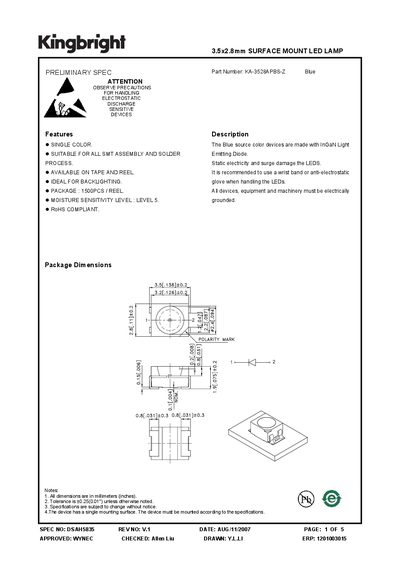

Spec sheet of KA-3528APBS-Z Blue color LED lamp.
The KA-3528APBS-Z is a single‑color blue surface‑mount LED lamp designed for SMT assembly and backlighting applications. It is supplied on tape or reel (1500 pcs/reel) and complies with RoHS. The device is moisture‑sensitive level 5 and requires careful electrostatic discharge handling.
The datasheet provides full electrical and optical characteristics, including a peak wavelength of 458 nm, forward voltage of 3.2‑3.7 V at 20 mA, and a maximum power dissipation of 111 mW. It also includes handling precautions, a selection guide, relative radiant intensity curves, and recommended reflow soldering profiles for lead‑free processes.
| Peak Wavelength | 458 nm |
|---|---|
| Forward Voltage (20 mA) | 3.2‑3.7 V |
| Capacitance | 110 pF |
| Power Dissipation (max) | 111 mW |
| DC Forward Current (max) | 30 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Moisture Sensitivity Level | Level 5 |
| Package Quantity | 1500 pcs/reel |
The recommended reflow temperature is 245 °C ± 5 °C, with a maximum soldering temperature of 260 °C.
The forward voltage is between 3.2 V and 3.7 V at 20 mA.
The device has a moisture sensitivity level of Level 5.
