This data table introduces the specifications of L-934GD GREEN (GaP) GREEN DIFFUSED 8 20 60°, including dimensions, electrical/optical characteristics, absolute maximum ratings, etc.

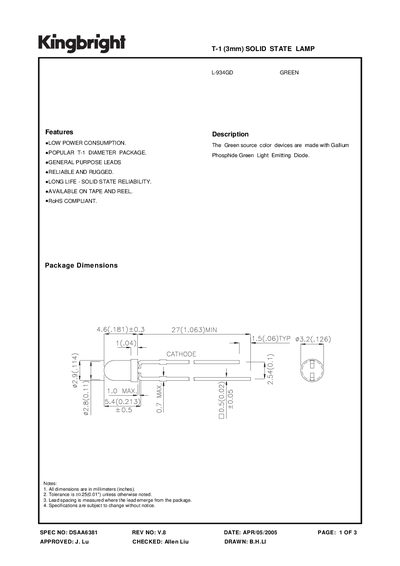

The Kingbright L-934GD is a 3 mm T‑1 package green solid‑state lamp. This datasheet provides the device’s key features, including low power consumption, long life, and RoHS compliance, together with mechanical dimensions and lead spacing.
Detailed electrical and optical characteristics are listed, such as peak wavelength, forward voltage, reverse current, and maximum ratings. The document also includes derating curves, spatial distribution graphs, and notes on sorting tolerances for wavelength, luminous intensity, and forward voltage.
| Peak Wavelength | 565 nm |
|---|---|
| Forward Voltage (20 mA) | 2.2 V |
| Reverse Current (5 V) | 10 µA |
| Power Dissipation | 105 mW |
| DC Forward Current | 25 mA |
| Peak Forward Current | 140 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Capacitance | 15 pF |
The peak wavelength is 565 nm.
It requires about 2.2 V forward voltage at 20 mA.
The peak forward current rating is 140 mA.
It can operate from –40 °C to +85 °C.
