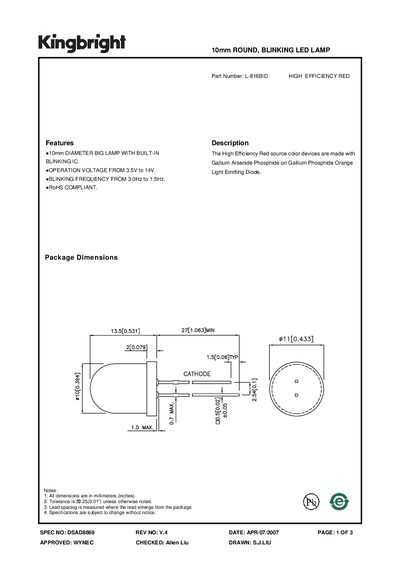

This file is about the specification of L-816BID HIGH EFFICIENCY RED, including product dimensions, electrical/optical characteristics, absolute maximum ratings, etc.
The DSAD8869 is a 10 mm round LED lamp with a built‑in blinking IC. It operates from 3.5 V to 14 V, is RoHS compliant, and emits high‑efficiency red light (peak wavelength ~627 nm). The package dimensions are 10 mm in diameter and it features a blink frequency of 1.5 Hz to 3 Hz.
Electrical and optical characteristics include a forward current of 8 mA to 22 mA, supply current ranging from 8 mA (VF=3.5 V) to 44 mA (VF=14 V), power dissipation of 310 mW, and a forward voltage of 14 V. The device operates between –40 °C and +70 °C and can be stored from –40 °C to +85 °C.
| LED type | High Efficiency Red |
|---|---|
| Package diameter | 10 mm |
| Operating voltage | 3.5 V to 14 V |
| Forward current | 8 mA to 22 mA |
| Supply current (VF=3.5 V) | 8 mA |
| Supply current (VF=14 V) | 44 mA |
| Blink frequency | 1.5 Hz to 3 Hz |
| Power dissipation | 310 mW |
| Forward voltage | 14 V |
| Operating temperature | -40 °C to +70 °C |
It operates from 3.5 V to 14 V.
The LED blinks at 1.5 Hz to 3 Hz.
Yes, it is RoHS compliant.
