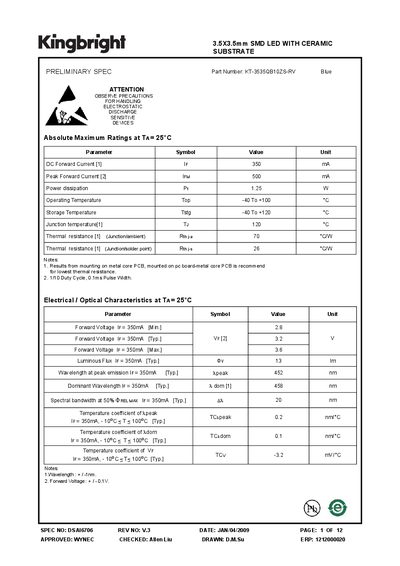

The data table provides the technical parameters of KT-3535QB10ZS-RV LED, including forward current, peak current, power dissipation, working temperature, storage temperature, junction temperature, junction/ambient thermal resistance, junction/solder point thermal resistance, minimum forward voltage, typical forward voltage, maximum forward voltage, peak current, typical wavelength, dominant wavelength, wavelength coefficient, voltage coefficient, luminous flux.
The KT-3535QB10ZS-RV is a 3.5 mm × 3.5 mm × 0.8 mm surface‑mount LED with a ceramic substrate and silicone resin encapsulation. It offers high brightness, low power consumption, and RoHS compliance for use in a variety of electronic assemblies.
The document lists electrical and optical characteristics, recommended handling and moisture‑sensitivity procedures, reflow soldering profile, and packaging details to ensure reliable performance and safe manufacturing.
| DC Forward Current | 350 mA |
|---|---|
| Power Dissipation | 1.25 W |
| Operating Temperature Range | -40 °C to +100 °C |
| Typical Forward Voltage (350 mA) | 3.2 V |
| Typical Luminous Flux (350 mA) | 13 lm |
| Peak Wavelength | 452 nm |
| Dominant Wavelength | 458 nm |
| Thermal Resistance (Junction‑Ambient) | 70 °C/W |
The maximum forward current is 350 mA.
A reflow temperature of 245 °C (±5 °C) is recommended, with a maximum of 260 °C.
The package measures 3.5 mm × 3.5 mm × 0.8 mm.
