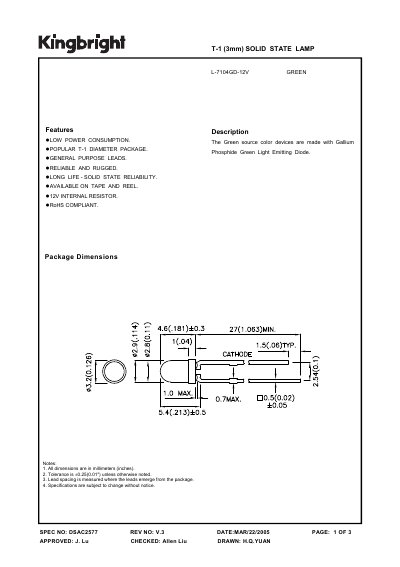

The file is the specification sheet of L-7104GD-12V GREEN, which introduces the features and characteristics of the product.
The L-7104GD-12V is a solid‑state green LED (GaP) designed for low‑power applications. It features a 12 V internal resistor, RoHS compliance, and is available on tape and reel.
The datasheet provides package dimensions, electrical and optical characteristics, absolute maximum ratings, and sorting accuracy details, helping designers select and integrate the component into their designs.
| Forward Voltage | 14 V |
|---|---|
| Forward Current | 8.5‑11.5 mA |
| Power Dissipation | 120 mW |
| Peak Wavelength | 565 nm |
| Dominant Wavelength | 568 nm |
| Spectral Line Half‑width | 30 nm |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
The forward voltage is 14 V.
It operates from –40 °C to +70 °C.
Yes, the device is RoHS compliant.
Typical forward current is between 8.5 mA and 11.5 mA.
