This document describes a super bright red light emitting diode product with features such as low power consumption, high reliability, and long life.

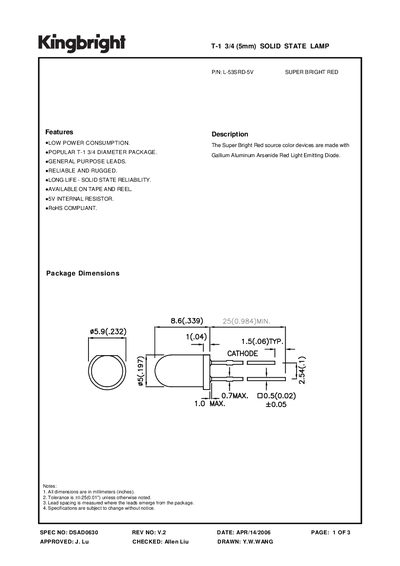

The Kingbright T-1 3/4 (5mm) solid state lamp is a super‑bright red LED offered in tape and reel formats. It features low power consumption, long life, and RoHS compliance, making it suitable for general‑purpose applications.
The datasheet provides detailed package dimensions, electrical and optical characteristics such as peak wavelength, forward current, and power dissipation, as well as absolute maximum ratings and temperature limits for reliable operation.
| Peak Wavelength | 660 nm |
|---|---|
| Forward Current (typical) | 13‑17.5 mA |
| Reverse Voltage | 5 V |
| Power Dissipation | 85 mW |
| Operating Temperature Range | -40 °C to +70 °C |
The peak wavelength is 660 nm.
The typical forward current ranges from 13 mA to 17.5 mA.
The LED can tolerate up to 5 V reverse voltage.
It operates from –40 °C up to +70 °C.
