Molex launches new HDMI small footprint receptacle, suitable for applications that require space saving. It supports 5Gbps bandwidth, which can support high definition video and multi-channel digital audio.

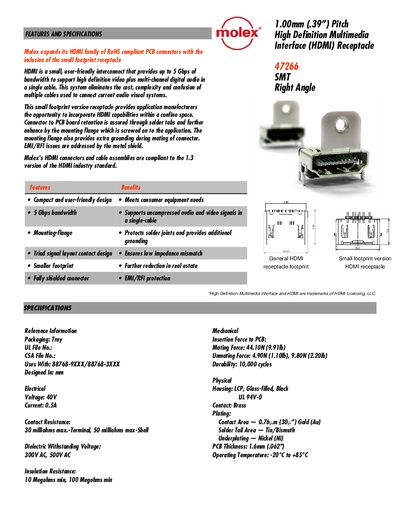

The Molex 47266 is a small‑footprint, right‑angle HDMI receptacle designed for high‑definition video and multi‑channel audio in a single cable. It features a metal shield for EMI/RFI protection, a mounting flange for secure PCB attachment and extra grounding, and complies with HDMI 1.3 standards.
Key specifications include a 1.00 mm (0.39 in) pitch, 5 Gbps bandwidth, 40 V voltage rating, 0.5 A current rating, and a durability of 10,000 mating cycles. The connector is housed in an LCP, glass‑filled material, with gold‑plated contacts and a PCB thickness requirement of 1.6 mm.
| Pitch | 1.00 mm (0.39 in) |
|---|---|
| Bandwidth | 5 Gbps |
| Voltage rating | 40 V |
| Current rating | 0.5 A |
| Contact resistance | 30 mΩ max (terminal), 50 mΩ max (shell) |
| Dielectric Withstanding Voltage | 300 V AG, 500 V AC |
| Insulation resistance | 10 MΩ min, 100 MΩ min |
| Mating force | 44.10 N (9.91 lb) |
| Unmating force | 4.90 N (1.10 lb) or 9.80 N (2.20 lb) |
| Durability | 10,000 cycles |
| Operating temperature | -20 °C to +85 °C |
| Housing material | LCP, glass‑filled, black |
| Contact plating | Gold (0.76 µm) |
| PCB thickness | 1.6 mm (0.062 in) |
It supports up to 5 Gbps of bandwidth.
The connector has a 1.00 mm (0.39 in) pitch.
The mating force is 44.10 N (9.91 lb) and the unmating force is 4.90 N (1.10 lb) or 9.80 N (2.20 lb).
It operates from –20 °C to +85 °C.
