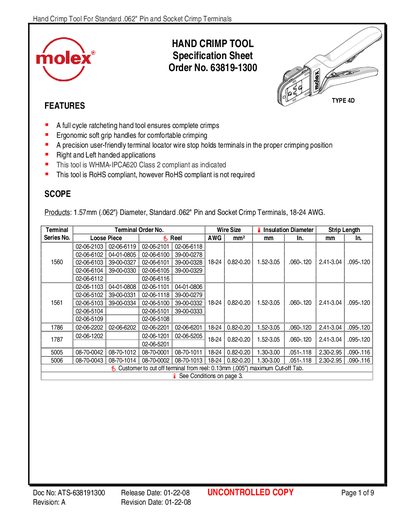

This file is a product specification sheet for the 63819-1300 hand crimp tool
The Molex Hand Crimp Tool is a full‑cycle ratcheting hand tool designed for standard .062" pin and socket terminals (18‑24 AWG). It features ergonomic soft‑grip handles, a user‑friendly terminal locator, and can be configured for right‑ or left‑hand operation. The tool complies with WHMA‑IPCA620 Class 2 and is ROHS compliant.
The document provides detailed operating instructions, preload adjustment procedures, maintenance recommendations, warranty information, and a parts list. It also includes pull‑force specifications and guidelines for re‑certifying the tool after use.
| Tool Type | 4D |
|---|---|
| Ratcheting | Full cycle ratcheting hand tool ensures complete crimps |
| Handle Grip | Ergonomic soft grip handles |
| Terminal Locator | User‑friendly terminal locator wire stop |
| Handedness | Right and left handed applications |
| Compliance | WHMA‑IPCA620 Class 2 |
| ROHS | ROHS compliant |
| Supported Terminals | .062" pin and socket, 18‑24 AWG |
| Minimum Pull Force | Must exceed listed minimum pull‑force specifications |
The tool is intended for standard .062" pin and socket crimp terminals, covering wire sizes 18‑24 AWG.
Rotate the setting wheel counter‑clockwise to increase force or clockwise to decrease it, then lock the wheel.
Molex warrants the tool against manufacturing defects for 30 days from purchase.
