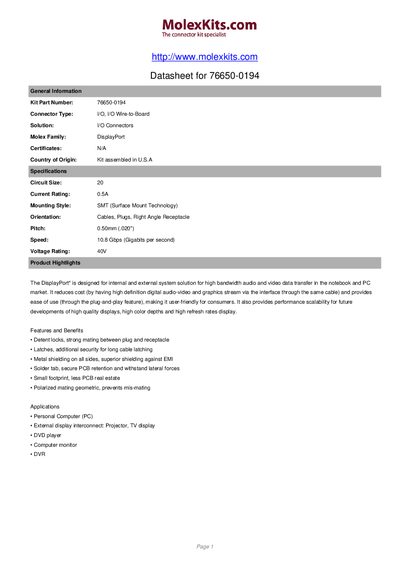

The 76650-0194 is a DisplayPort interface connector from Molex. It is manufactured using SMT technology and features high performance, ease of use and low cost.
The Molex 76650-0194 is a wire‑to‑board DisplayPort connector kit designed for high‑bandwidth audio and video data transfer in notebook and PC markets. It provides a compact, surface‑mount solution with a right‑angle orientation and includes all necessary components such as plugs, receptacles, and latches.
Key features include detent locks, metal shielding for EMI protection, polarized mating to prevent mis‑connection, and a small PCB footprint. The kit is suitable for personal computers, external display interconnects (projectors, TV displays), DVD players, monitors, and DVRs, offering up to 10.8 Gbps data rate and 0.5 A current rating.
| Pitch | 0.50mm (.020") |
|---|---|
| Mounting Style | SMT (Surface Mount Technology) |
| Data Rate | 10.8 Gbps |
| Connector Type | DisplayPort* Male Receptacle |
| Orientation | Right Angle |
It supports up to 10.8 Gbps.
The kit uses Surface Mount Technology (SMT).
It is suitable for PCs, external displays (projectors, TV), DVD players, monitors, and DVRs.
