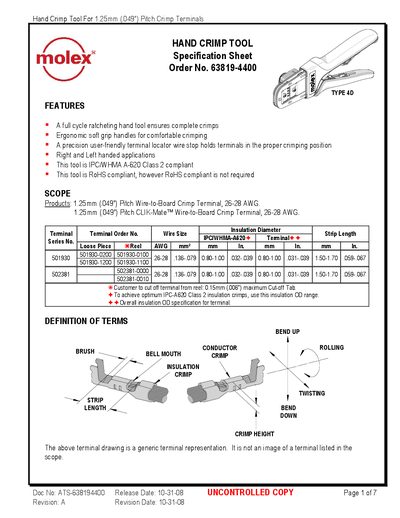

Specification sheet of manual crimping tool, including product features, scope of application, product model, product size and other information.
The hand crimp tool is a full‑cycle ratcheting device designed for 1.25 mm (.049") pitch wire‑to‑board crimp terminals (26‑28 AWG). It includes ergonomic soft‑grip handles, a precision terminal locator, and is IPC‑AWHMA A‑620 Class 2 and RoHS compliant.
The manual details step‑by‑step crimping procedures, left‑hand conversion, lubrication points, preload adjustment (25‑45 lb), maintenance recommendations, warranty terms, and a parts list with order numbers. It also provides pull‑force specifications and guidance for re‑certifying the tool.
| Preload force | 25‑45 lb |
|---|---|
| IPC compliance | IPC‑AWHMA A‑620 Class 2 |
| RoHS compliance | Yes |
| Pitch | 1.25 mm (.049") |
| Supported wire size | 26‑28 AWG |
The tool is factory preset to a preload force of 25‑45 lb.
Yes, it meets IPC‑AWHMA A‑620 Class 2 requirements.
Yes, the tool can be converted for left‑hand operation by reversing the tooling.
