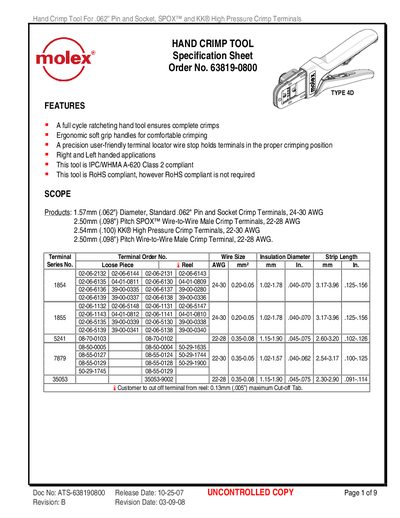

This document describes the specifications of a hand crimp tool for .062” pin and socket, SPOX™ and KK® high pressure crimp terminals. The tool features a full cycle ratcheting design for complete crimps, ergonomic soft grip handles for comfortable crimping, a precision user-friendly terminal locator wire stop, and is suitable for both right and left-handed applications. The tool is IPC/WHMA A-620 Class 2 compliant and RoHS compliant.
The Molex Hand Crimp Tool is a full‑cycle ratcheting hand tool designed for .062" pin and socket, SPOX™ and KK® high‑pressure crimp terminals. It includes ergonomic soft‑grip handles, a user‑friendly terminal locator, and can be configured for right‑ or left‑hand operation. The tool complies with IPC/WHMA A‑620 Class 2 and is ROHS compliant.
The manual provides step‑by‑step crimping instructions, locator replacement procedures, lubrication and preload adjustment guidelines, warranty information, and a parts list with order numbers. It also includes pull‑force profiles and certification notes for re‑certifying the tool.
| Ratcheting mechanism | Full cycle ratcheting ensures complete crimps |
|---|---|
| Handle design | Ergonomic soft‑grip handles |
| Compatibility | .062" Pin and Socket, SPOX™ and KK® High Pressure terminals |
| Handedness | Configurable for right‑handed or left‑handed use |
| Standards compliance | IPC/WHMA A‑620 Class 2 |
| ROHS status | ROHS compliant (not required) |
| Preload force (factory preset) | 25‑45 lbs |
| Warranty period | 30 days |
The tool is intended for .062" pin and socket, SPOX™ wire‑to‑wire male crimp terminals, and KK® high‑pressure crimp terminals.
Press the preload release link, rotate the setting wheel clockwise to decrease or counter‑clockwise to increase the handle force, then release the link to lock the setting.
The tool is warranted against manufacturing defects for 30 days; repair or exchange is provided if a defect occurs within that period.
