This hand crimp tool is used to crimp Sealed Mini Fit ® H20 male and female terminals, 18-20 AWG.

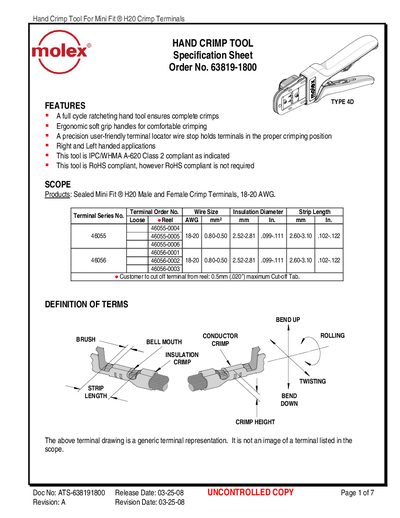

The Hand Crimp Tool is a full‑cycle ratcheting device designed for Mini Fit @ H20 crimp terminals (18‑20 AWG). It includes ergonomic soft‑grip handles, a precision terminal locator, and right‑ or left‑hand operation. The tool complies with IPC/AVHMA A‑620 Class 2 and is RoHS compliant.
The manual provides step‑by‑step crimping instructions, locator replacement procedures, maintenance guidelines (cleaning, lubrication every 5,000 crimps or 3 months), preload adjustment (factory preset to 25‑45 lb), warranty information (30 days), and a parts list for service and repair.
| Compliance | IPC/AVHMA A‑620 Class 2 |
|---|---|
| RoHS | Compliant |
| Factory preload | 25‑45 lb |
| Warranty period | 30 days |
