This document describes the features and characteristics of Molex's DisplayPort, USB, and multi A/V connectors.

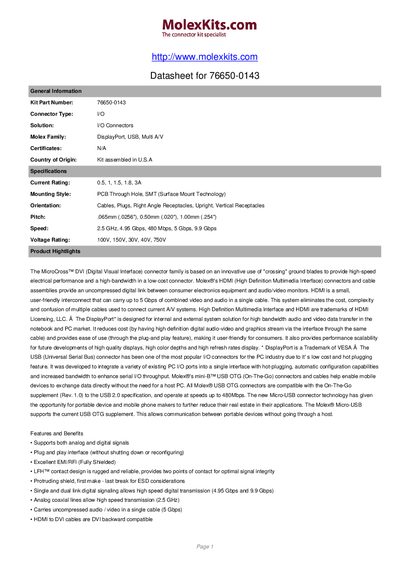

The Molex 76650-0143 kit datasheet provides general information about the connector kit, including part number, connector family (DisplayPort, USB, Multi A/V) and certifications. It lists key specifications such as current rating, mounting style, orientation, pitch, speed and voltage rating.
The document also details features and benefits, typical applications like desktop computers and multimedia equipment, and a complete bill of materials with part numbers for DVI, HDMI, DisplayPort, USB and other connectors.
| Current Rating | 0.5, 1, 1.5, 1.8, 3A |
|---|---|
| Mounting Style | PCB Through Hole, SMT |
| Orientation | Cables, Plugs, Right Angle Receptacles, Upright, Vertical Receptacles |
| Pitch | .065mm, 0.50mm, 1.00mm |
| Speed | 2.5 GHz, 4.95 Gbps, 480 Mbps, 5 Gbps, 9.9 Gbps |
| Voltage Rating | 100V, 150V, 30V, 40V, 750V |
| Connector Type | vO |
| Country of Origin | U.S.A |
The kit supports current ratings of 0.5 A, 1 A, 1.5 A, 1.8 A and 3 A.
The kit includes DVI‑I, DVI‑D, HDMI, DisplayPort, USB Type A, USB Type B, USB mini‑B and USB OTG connectors.
Connectors can be mounted as PCB through‑hole or surface‑mount technology (SMT).
