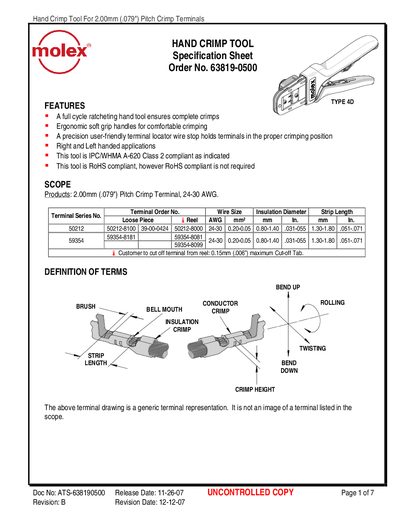

This manual describes the use of the Molex Hand Crimp Tool for 2.00 mm pitch crimp terminals, covering selection, crimping procedure, and locator operation. It includes safety notes, compliance information, and a parts list for service and replacement.
Key features include a full‑cycle ratcheting mechanism, ergonomic soft‑grip handles, IPC/AVHMA A‑620 Class 2 compliance, and ROHS compliance. The guide also explains preload adjustment, routine lubrication, and warranty terms to ensure reliable, long‑life performance.
| Ratcheting mechanism | Full cycle ratcheting hand tool |
|---|---|
| Grip | Ergonomic soft grip handles |
| Compliance | IPC/AVHMA A‑620 Class 2 |
| ROHS | ROHS compliant |
| Factory preset preload | 25‑45 LBS |
| Adjustable preload | Setting wheel adjusts handle force |
| Minimum pull force | Must exceed listed minimum |
Rotate the setting wheel counter‑clockwise to increase handle force or clockwise to decrease it, then lock the wheel.
Apply a light oil at the oil points every 5,000 crimps or every three months to extend tool life.
The tool is warranted against manufacturing defects for 30 days.
