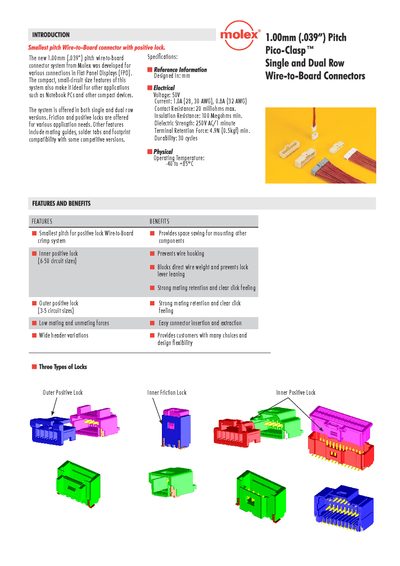

This document introduces the features and benefits of Molex 1.00mm pitch wire-to-board connector, including small size, space saving, anti-hooking, strong locking force and low insertion and removal force
The Molex 1.00 mm (.039”) pitch Pico‑Clasp wire‑to‑board connector system is designed for compact devices such as flat‑panel displays, notebook PCs and other space‑constrained applications. It is available in single‑row and dual‑row versions and provides a variety of lock mechanisms—outer positive lock, inner friction lock, and inner positive lock—to suit different mounting needs.
Key features include low mating forces, strong retention, and a range of header variations. The connectors meet demanding electrical requirements with low contact resistance, high insulation resistance, and robust dielectric strength, making them suitable for plasma display panels, LCD TVs, note‑PCs and other compact devices.
| Contact Resistance | 20 mΩ max |
|---|---|
| Insulation Resistance | 100 MΩ min |
| Dielectric Strength | 250 V AC/min |
| Terminal Retention Force | 4.9 N (0.5 kgf) min |
| Durability | 30 cycles |
The connector has a 1.00 mm (.039”) pitch.
Three lock types are offered: outer positive lock, inner friction lock, and inner positive lock.
