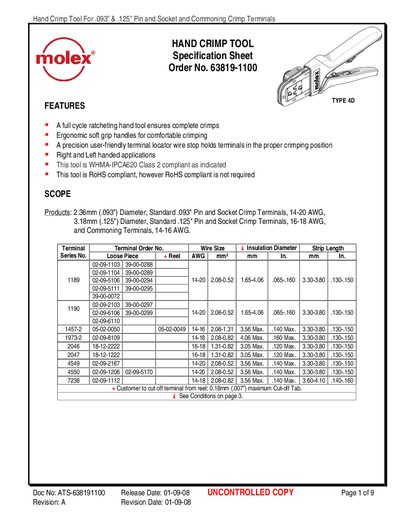

This is a specification sheet for a hand crimping tool, suitable for 0.093 inches and 0.125 inches of pins and sockets and commoning terminals.
The Molex Hand Crimp Tool is a full‑cycle ratcheting hand tool designed for .093" and .125" pin and socket terminals. It features ergonomic soft‑grip handles, a user‑friendly terminal locator, and can be configured for right‑ or left‑handed use. The tool complies with WHMA‑IPCA620 Class 2 and is ROHS compliant.
The manual provides step‑by‑step instructions for crimping, locator installation, tool preload adjustment, and routine maintenance. It also lists the supported wire sizes (14‑20 AWG for .093" terminals, 16‑18 AWG for .125" terminals) and includes a parts list with order numbers.
| Ratcheting type | Full cycle ratcheting hand tool |
|---|---|
| Compliance | WHMA‑IPCA620 Class 2 |
| ROHS compliance | ROHS compliant |
| Preload force | 25‑45 LBS (factory preset) |
| Supported wire sizes | 14‑20 AWG for .093" terminals; 16‑18 AWG for .125" terminals |
The tool supports 14‑20 AWG wire for .093" pin and socket terminals and 16‑18 AWG wire for .125" pin and socket terminals.
Hold the tool, squeeze the link to release the preload wheel, rotate the wheel clockwise to decrease or counter‑clockwise to increase the force, then release the link to lock the setting.
Clean with a brush, apply a thin coat of light oil to pivot points every 5,000 crimps or 3 months, and store with handles closed in a dry area.
