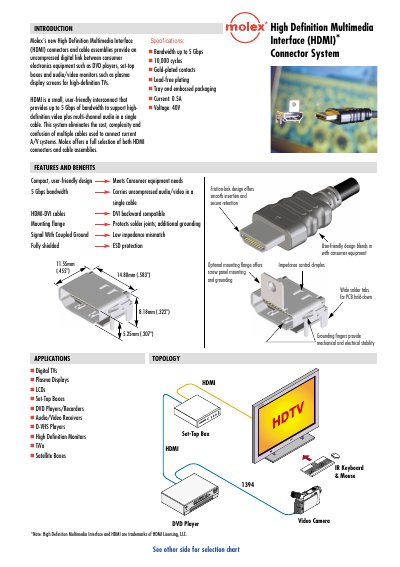

Molex's new High Definition Multimedia Interface (HDMI) connectors and cable assemblies provide an uncompressed digital link between consumer electronics equipment such as DVD players, set-top boxes and audio/video monitors such as plasma display screens for high-definition TVs.
The Molex HDMI Connector System provides an uncompressed digital link for consumer electronics such as DVD players, set‑top boxes, and high‑definition monitors. It offers a compact, user‑friendly design with up to 5 Gbps bandwidth, gold‑plated contacts, lead‑free plating, and full shielding.
The system includes a range of connector types, cable assemblies, and optional mounting flanges. Specifications include 0.5 A current rating, 40 V voltage rating, and options for 1 m to 5 m cable lengths with AWG 28/30 TMDS conductors. The connectors are backward compatible with DVI and feature ESD protection and low‑impedance matching.
| Bandwidth | up to 5 Gbps |
|---|---|
| Current rating | 0.5 A |
| Voltage rating | 40 V |
| Contact finish | Gold‑plated |
| Plating | Lead‑free |
| Cable conductor size | AWG 28 (TMDS) / 30 (TMDS) |
| DVI compatibility | Backward compatible |
It supports up to 5 Gbps of bandwidth.
The connectors are rated for 0.5 A of current.
Yes, the contacts are gold‑plated.
Yes, it provides backward compatibility to DVI.
