76650-0165 is a panel interface of Molex company. It has an ultra low mating profile of 1.90mm and can be used for LCD, Mini PCI module, mobile phones, cameras and other products.
The 76650-0165 kit is part of Molex's PanelMate™ series, offering an ultra‑low‑profile wire‑to‑board connector with a 1.25 mm pitch and heights below 2.0 mm. It includes SMT‑mountable receptacles and right‑angle headers, rated for 1 A current and 125 V voltage, supporting 32‑28 and 32‑30 AWG wire gauges.

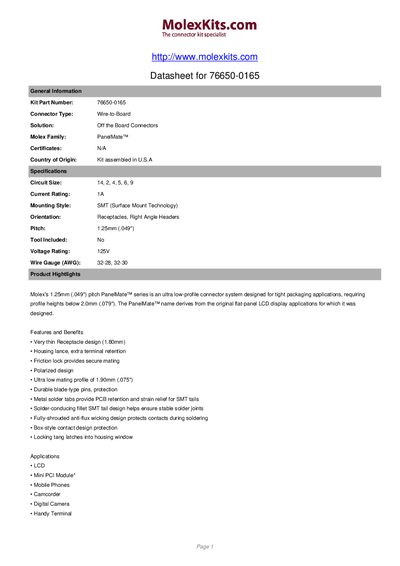

The connector is suited for a wide range of low‑profile applications such as LCD panels, Mini PCI modules, mobile phones, camcorders, digital cameras, medical equipment, base stations, and notebook PCs. The datasheet also lists the complete bill of materials for the kit, though no assembly tool is included.
| Circuit Size | 14, 2,4, 5, 6,9 |
|---|---|
| Current Rating | 1A |
| Mounting Style | SMT (Surface Mount Technology) |
| Orientation | Receptacles, Right Angle Headers |
| Pitch | 1.25mm (.049") |
| Voltage Rating | 125V |
| Wire Gauge (AWG) | 32-28, 32-30 |
| Ultra low mating profile | 1.90mm (.075") |
The connector has a 1.25 mm (.049") pitch.
It is rated for a current of 1 A.
No, the kit does not include a tool.
