This document provides a detailed description of the specifications and characteristics of the MC1604C series, including mechanical data, electrical characteristics, optical characteristics, etc.
This datasheet provides the complete technical data for the Everbouquet MC1604C series LCD module, including mechanical dimensions, electrical ratings, optical performance and power supply requirements. It is intended for designers and engineers who need detailed parameters for integration into equipment.

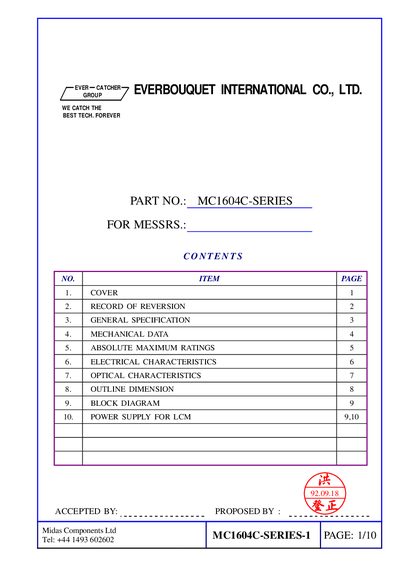

The document contains sections on general specifications, mechanical data, absolute maximum ratings, electrical and optical characteristics, outline dimensions, block diagram and recommended power supply configurations for the LCD module and its backlight.
| Number of characters | 16 CH × 4 LINE |
|---|---|
| Module size | 61.8 mm W × 25.2 mm H |
| Dot size | 0.56 mm W × 0.56 mm H |
| Power supply for logic | 0 V to 6.0 V |
| Input voltage (VRP) | 2.20 V |
| Viewing angle (typical) | 20°–30° |
| Contrast ratio (typical) | 2.0–3.0 |
The module measures 61.8 mm wide by 25.2 mm high.
The module operates normally from 0 °C to 50 °C.
The module uses an LED backlight.
The recommended LCD driving voltage is about 4.2 V to 4.5 V depending on the LCD type.
