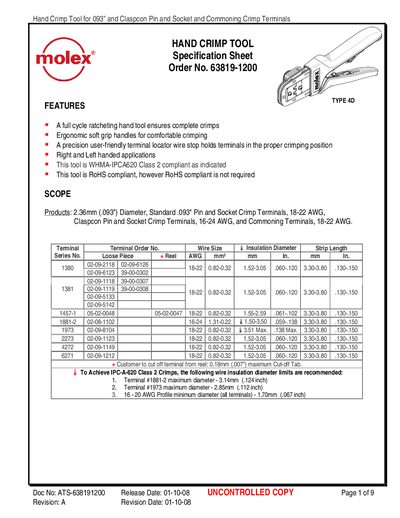

This document is a specification sheet for a hand crimp tool that can be used for 093” and Claspcon pin and socket and commoning crimp terminals. The tool is a full cycle ratcheting hand tool that ensures complete crimps. It features ergonomic soft grip handles for comfortable crimping and a precision user-friendly terminal locator wire stop that holds terminals in the proper crimping position. The tool is also right and left handed.
The 4D Hand Crimp Tool is a full‑cycle ratcheting hand tool designed for crimping 0.093" (2.36 mm) standard, clasp‑con, and commoning terminals. It offers ergonomic soft‑grip handles, a user‑friendly terminal locator, and can be configured for right‑ or left‑hand operation. The tool complies with WHMA‑IPCA620 Class 2 and is ROHS compliant.
The manual explains how to install the locator, perform crimping, adjust preload force, and maintain the tool. It includes safety cautions, warranty information, and a parts list with order numbers for replacement components.
| Ratcheting type | Full‑cycle ratcheting |
|---|---|
| Handle design | Ergonomic soft‑grip |
| Terminal locator | User‑friendly, wire stop |
| Handedness | Right and left hand applications |
| Compliance | WHMA‑IPCA620 Class 2 |
| Compliance | ROHS compliant |
| Preload force (factory preset) | 25‑45 lbs |
| Maximum terminal insulation diameter (example) | 3.14 mm for terminal #1881‑2 |
The tool works with 2.36 mm (.093") diameter standard pin and socket crimp terminals (18‑22 AWG), clasp‑con pin and socket terminals (16‑24 AWG), and commoning terminals (18‑22 AWG).
Apply light oil (e.g., 30 weight automotive oil) to the oil points every 5,000 crimps or every 3 months, and clean the tool with a lint‑free cloth.
The tool is warranted against manufacturing defects for 30 days.
